Unistrong G970II GPS GNSS RTK Receiver Base And Rover Surveying Instrument

Name: Unistrong G970II GPS GNSS RTK Receiver Base And Rover Surveying Instrument
Brand: Unistrong
Price: 3 USD

Buy cheap Unistrong G970II GPS GNSS RTK Receiver Base And Rover Surveying Instrument product

Brand Name : Unistrong

Model Number : G970ii

Place of Origin : China

MOQ : 1 piece

Price : $3,050.00

Payment Terms : L/C, T/T

Supply Ability : 1 ~ 30 day

Delivery Time : 30 work day

Warranty : 3 years

Product name : RTK Unistrong G970ii

Channel : 800 Channels

DGNSS : ＜0.5m

Power : Internal battery

Internal UHF radio : 1W/2W（adjustable）

Removable battery : 24.5Wh(Two pieces)

Weight : 1.2kg

IMU : 60°

Protocol : SOUTH, Hi-target, Trimtalk, Transeot

Contact Now

Unistrong G970II GPS Gnss Rtk Receiver Surveying Instrument

Unistrong G970II GPS GNSS RTK Receiver Base And Rover Surveying Instrument

Technical Specificat

Product model		G970II
GNSS	Channels	800 channels
GNSS	Satellite Signals	GPS: L1C/A,L1C,L1P,L2C,L2P,L5; GLONASS:G1P1,G1OC,G2OC,G2P2,G3OC BDS: B1I, B2I, B3I, B1C, B2a, B2b, ACEBOC; Galileo: E1BC, E5a, E5b, ALTBOC, E6 QZSS: L1C/A, L1C, L2C, L5, LEX; SBAS: L1, L5; IRNSS: L5; L-Band
Accuracy	Static	H: 2.5mm±1ppm,V: 5mm±1ppm
	RTK	H: 8mm±1ppm,V: 15mm±1ppm
	DGNSS	<0.5m
	ATLAS H10	8cm
	Initialization Time	8s
	Initialization Reliable	99.9%
System	OS	Linux
	Memory	8GB,support expandable MicroSD
	Wi-Fi	802.11 b/g/n
	Bluetooth	V2.1+EDR/V4.1Dual, Class2
	E-Bubble	Support
	IMU Tilt Survey	Fusion positioning, 400Hz refresh rate, 2cm (@60°Tilt degree)
	Audio	support TTS audio broadcast
Datalink	UHF radio	T/Rx Internal Radio, 1W/2W adjustable, 410-470MHz
	Radio protocol	Support GeoTalk, SATEL, PCC-GMSK, TrimTalk, TrimMark, South, Hi-Target
	Network	4G-LTE, TE-SCDMA, CDMA(EVDO 2000), WCDMA, GSM(GPRS)
	Reference outputs	RTCM2.3, RTCM3.2, CMR,CMR+,ROX
Physical	Interface	1TNC Radio Antenna, 15Pin(Power & RS232),1*7Pin (USB 81 RS232)
	Button	1 Power Button
	Indication Light	4 Indication Lights
	Size	Φ156mm×H76mm
	Weight	1.2kg
Power supply	Battery capacity	7.2V, 24.5Wh(standard two batteries)
	Life Timer	Static Survey: 15 hours, Rover RTK survey: 12h
	External power source	DC 9-18V, with overvoltage protection
Environment	Work Temperature	-35ºC~+65ºC
	Storage Temperature	-55ºC~+85ºC
	Waterproof & dustproof	IP68
	Humidity	100% anti-condensation

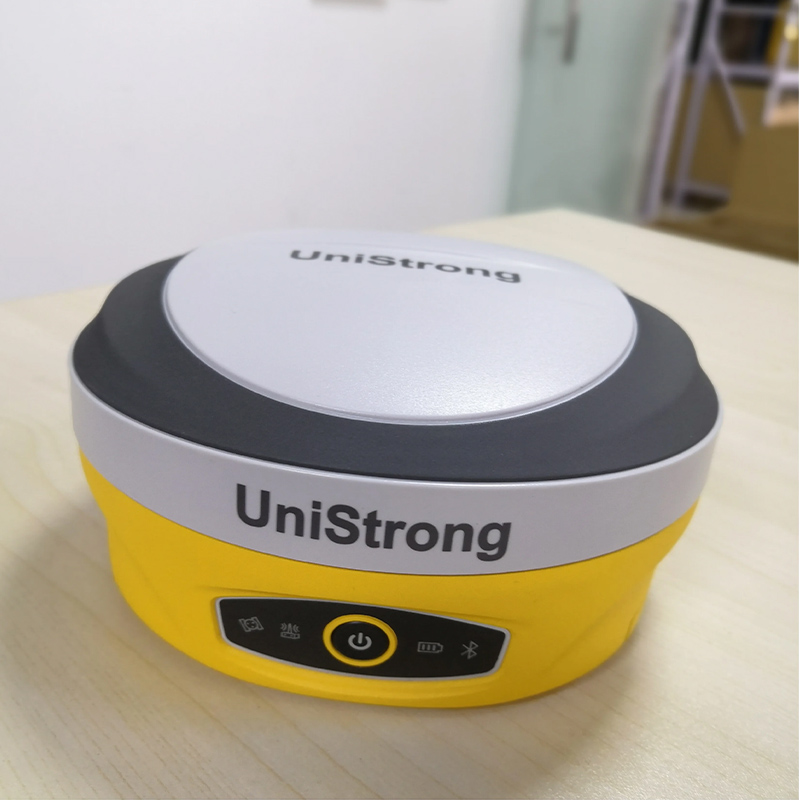

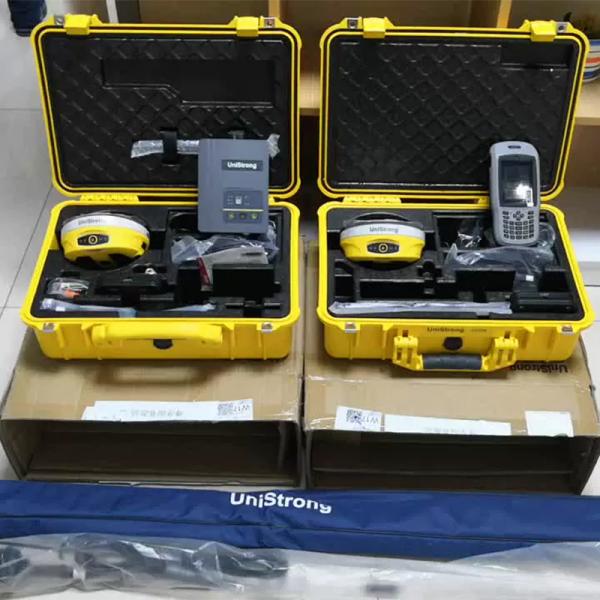

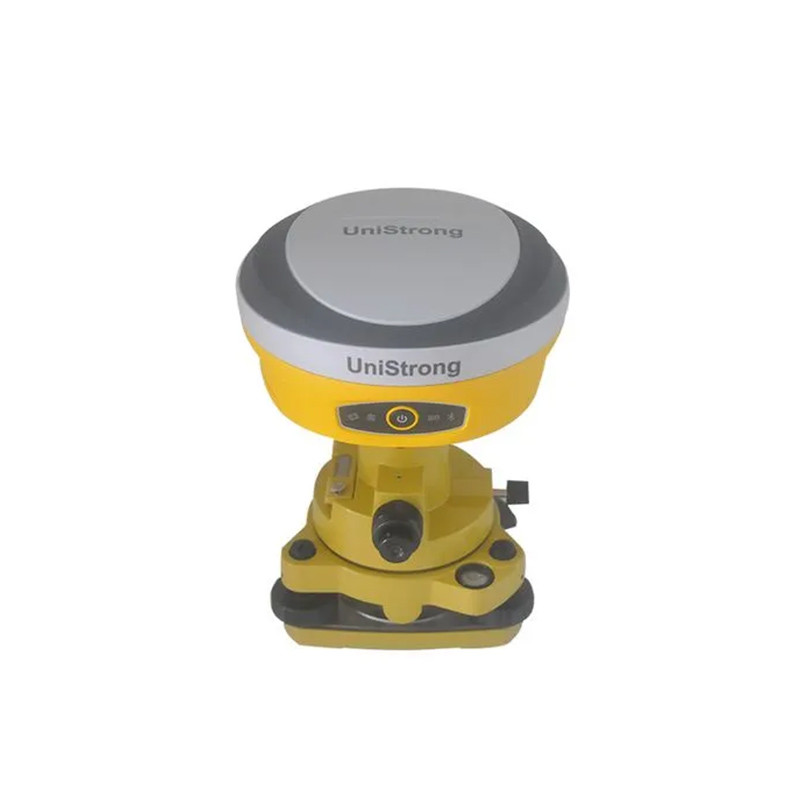

REAL PRODUCT PHOTO
